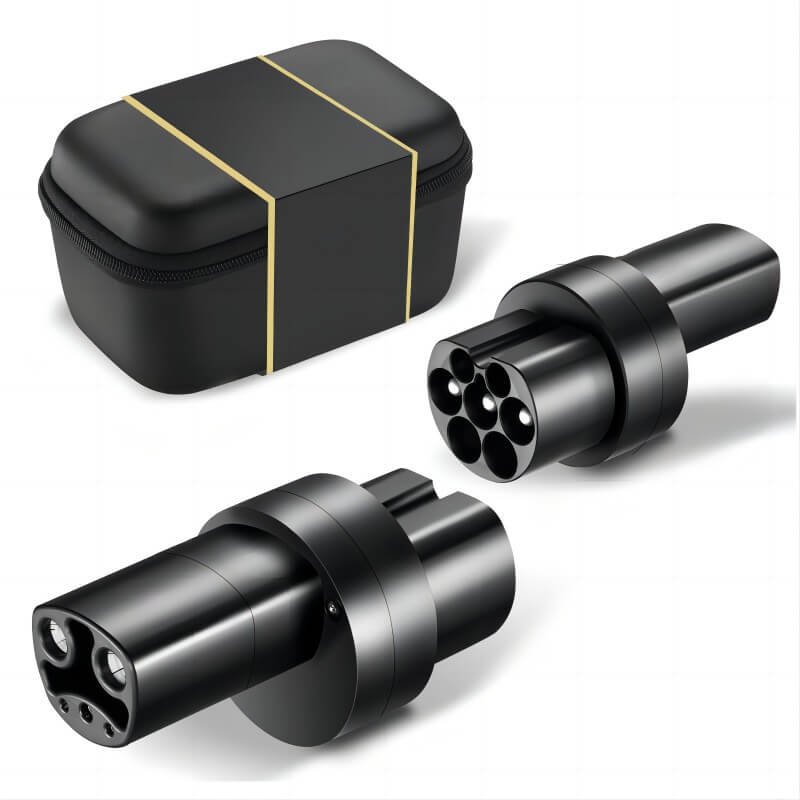

TYPE2 TO TESLA (AC SINGLE PHASE)

TYPE2 TO TESLA (AC SINGLE PHASE)

Applications

Suitable for home and industiral use.
Suitable for carrying in the car,traveling charging, and emergency charging

Type: European standard to US TESLA AC Standard
Main Markets: Europe、Middle East、Southeast Asia、South America、Central Asia

We designed two types of TYPE2 adapters. The DC adapter can only be used in Tesla Supercharger, the AC adapter can be used in other AC charging posts.

Categories: ,
Edit Content

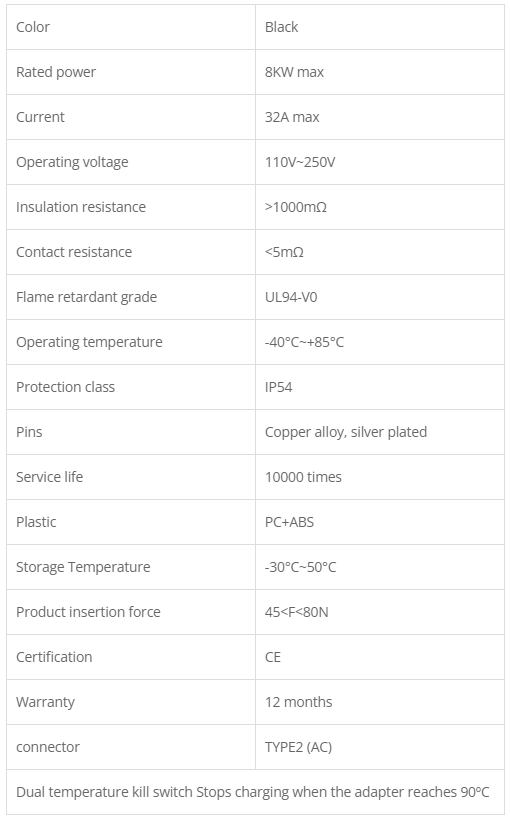

ColorBlackPinsCopper alloy, silver plated
Rated power8KW maxService life10000 times
Current32A maxPlasticPC+ABS
Operating voltage110V~250VStorage Temperature-30°C~50°C
Insulation resistance>1000mΩProduct insertion force45<F<80N
Contact resistance<5mΩCertificationCE
Flame retardant gradeUL94-V0Warranty12 months
Operating temperature-40°C~+85°CconnectorTYPE2 (AC)
Protection classIP54Dual temperature kill switch Stops charging when the adapter reaches 90ºC
